Study pressure notes to prepare for quiz next class (see above).
Class #18
Tuesday,
3/29
Warm-Up:
Old fireplaces were simply brick holes with a
brick tube that went out the roof of a house. Explain why old
fireplaces do not actually heat a house very well -- even when they
contain roaring fires.
Study for test retake -- or bring something to do if you are not
retaking the test.
Absent Students:
Complete warm-up. Watch video, and print out pressure notes.
Class #17
Friday,
3/25
Warm-Up:
A coin was found in eastern Europe. The
date on the coin was 350BC. Was the coin valuable due to its age?
Why or why not?
Today:
Test
Homework:
None
Absent Students:
Schedule a retake (outside of normal class time).
Class #16
Wednesday,
3/23
Warm-Up:
pounds
kilograms
90
41
100
45
110
50
120
54
130
59
140
64
150
68
160
73
170
77
180
82
200
91
220
100
240
109
260
118
280
127
300
136
Suppose you started expanding without gaining mass.
How big would you have to get in order to begin floating?
Use the table on the right to estimate your mass in
kilograms. We know that air has a density of about 1.2kg/m3,
so that's what your density would need to be in order to float.
use your mass to figure out your volume in m3 -- assuming
that your density is 1.2kg/m3.
If you were that big, and you were a cube, what would
be the length of each of your edges?
Today:
Finish Hot Air Balloon After-Flight Analysis. Check
answers.
Complete all of today's activities and turn in proof of completion to
Mr. Stapleton.
Class #15
Monday,
3/21
Warm-Up:

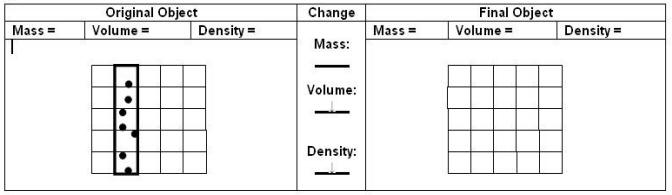

The table below shows an object with a bold outline.
Each dot represents a gram of mass, and each square represents a cm3
of volume. Complete the table and change the object so
that both its volume and density decrease.
Complete #2 and #4, listed in Today section, above
Class #13
Tuesday,
3/15
Warm-Up:
What does "per" mean, as it is used in "kg/m3"?
Find the totalmass and density of the
balloon described below. Then decide whether it will float in
air (if air's density is 1.2kg/m3).
Balloon volume = 0.25m3
Density of the hot air in the balloon is 0.96kg/m3.
The plastic in your balloon has a mass of 0.04kg.
The straws, candles, and tape in your balloon have a total mass
of 0.015kg.
Today:
Field trip information.
Build hot air balloons.
Estimate actual volume of hot air balloon using air source.
Time how many seconds it takes to inflate on setting "2."
Multiply that number by 0.004 to get your balloon volume in m3.
Fly balloons next class.
Homework: None
Absent Students:
Answer the warm-up question.
Class #12
Friday,
3/11
Warm-Up:

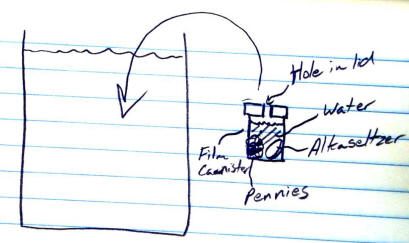

Suppose you have a film canister like the one below. There is a
hole in the center of the lid. The film canister contains 10
pennies and one Alkaseltzer tablet, and the remaining volume of the
canister is full of water. When the film canister is dropped into
a tub of water upside-down, it will sit on the bottom for a
while. Then the film canister will rise back to the surface on its
own. It will stay at the surface.
Why does the canister sink? And why does it rise a little
while after it has sunk?
Watch the video below, and complete #1 above (under "Today").
Use your own balloon design to complete the final page. Turn-in to Mr. S.
Class #11
Wednesday,
3/9
Warm-Up:
The picture below shows a "cartesian diver" in a 2-liter bottle.
If you squeeze the bottle tightly, the test tube "diver" will dive to
the bottom. If you then loosen your squeeze, the test tube will
rise to the top. Explain why this happens?
Design a box-shaped hot air balloon that will lift a maximum
payload. Determine its dimensions.
Homework:
Complete a box-shaped balloon design that can be made from a
1.75m x 2.8m sheet of plastic. Enter its dimensions into #14
on p. 3 of
this handout.
Absent Students:
Answer the warm-up question
Watch the videos below and complete
the back page of
density notes and questions.
Then watch the second video and design a hot air balloon using the
graph paper on the back of
this handout.
Class #10
Thursday,
3/3
Warm-Up:
Why do some things float, while other things sink?
Today:
Return Papers
New Unit -- Floating and Sinking, Hot Air Balloons
Watch the videos below and complete
density notes and questions.
Then create the low density box described on the back of the sheet.
Unfortunately, video 3 was lost, so you should find another student
to check your answers to the last few boxes.
Class #9
Friday,
2/18
Warm-Up:
Are you ready?
Launcher?
Graph?
Other?
Today:
Competition in lobby: 1) Sniper Competition 2) Egg Siege
Homework:
Absent Students:
Turn in launcher PowerPoint.
Come to call-back for launcher testing
Class #8
Wednesday,
2/16
Warm-Up:
Describe the two parts of Friday's competition
Today:Wrap things up
Complete survey
Finish your PowerPoint
before next class.
Delete any slides that you don't have
time to complete. Here's how to turn it in...
Turn the file in by dragging it into this folder
→ M:, Stapleton; drop; physics; projectile launchers; your class.
If you cannot put your file in that folder, email it to jstaplet@bsdvt.org.
Do not make a mistake with the e-mail address. Include all of your group
members names in the subject line and the body of your message. Don’t forget to
attach the PowerPoint slideshow!!
Practice!! Set targets at a variety of
distances between 1m and 6m. Can you get close to any target
on the first shot? If you can't find a way to do it. Use
the graph that you made last class. If the graph does not
work, make a new one. You can also use a table or chart to
tell you how far to pull the launcher back. Practice aiming
with your sight!!! If your sight doesn't work, either adjust your
sight or adjust your aiming.
Make sure that your launcher will be ready to go
on Friday. What if it breaks? What if your partner isn't
here? What if your rubber bands loosen up? Think about
these possibilities and overcome them!!
Homework:Be here for the contest
on Friday!!! We will head to the lobby almost immediately
Absent Students:
Complete the warm-up, above.
Work on launcher project for one hour outside of class time.
Provide proof of having worked on project.
Class #7
Monday,
2/14

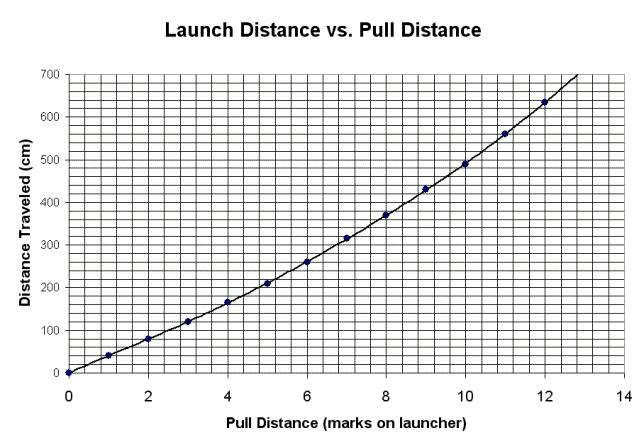

Warm-Up: According to the graph below, how far should
you pull the launcher back to shoot a projectile 490cm?
Today:
Who broke the windows?
Review how to create a graph of launch distance vs pull
distance.
You must make a graph -- even if you don't finish all of the
other PowerPoint slides. Do this today!
Work on launcher project.
Homework:Work on launcher project.
Don't fall behind.
Absent Students:
Complete the warm-up, above.
Work on launcher project for one hour outside of class time.
Provide proof of having worked on project.
Class #6
Thursday,
2/10
Warm-Up:

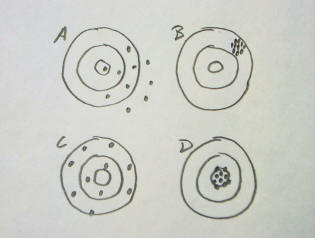

We have been measuring
precision. If we want to measure accuracy,
what should we do differently?
Today:
Review Launcher Project
Timeline. Where should you be at
this point?

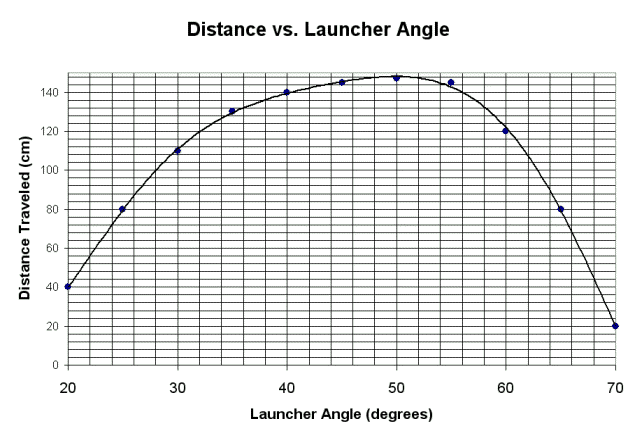

Complete graphing activity [Watch video below, for directions]. Use one of the pre-made Pasco
Brand launchers to create a graph of distance vs. launch angle.
On the highest distance setting (3 clicks), perform two
launches at 20 degrees, 25 degrees, 30 degrees -- all the way up to
70 degrees. Record your data in a table like the one below.
Then enter your data in
this spreadsheet (distance vs angle graph). Save the
spreadsheet to your folder and print the graph (tab at bottom).
RECORD THE NUMBER OF THE LAUNCHER THAT YOU USED!!! We will
have a shooting contest next class, and your data only works for
your launcher.
Continue work on launcher project. As you progress, enter
data into the
Updated PowerPoint template and save it in your folder. If you
borrow a steel ball, check it out by writing your name on the board.
Erase your name after you return it.
Distance Sphere Traveled (cm)
Launcher Angle
(degrees)
Trial 1
Trial 2
20
25
30
35
40
45
50
55
60
65
70
Homework:None
Absent Students:
Make up the quiz outside of regular class time.
Complete the graphing activity above (#3). If you want
help, do this during call-back. If you are prepared to do it
on your own, you can complete the activity during 4th block on any
day except Friday (Friday is okay, as long as you finish before
2:00).
Class #3
Monday,
1/31
Warm-Up:
Find a calculator and calculate the % average deviation for
each of the shooters below.
Who is the best shooter?
Fred: Distance to target = 100m. Average
deviation = 4m
Cissy: Distance to target = 50m. Average deviation = 1m
Perkins: Distance to target = 10m. Average deviation =
0.5m
Collect baseline precision data on a
precision data sheet. Use
computer spreadsheet
to perform calculations [Enter your data into the yellow cells.
Then "save as" into your folder, with your names in the file name.].
Create a PowerPoint slideshow. Use the template on the
M:drive to get started (Here's how do find it... M: drive,
Stapleton, Read-Only, Physics, Projectile Launchers).
Make improvements to your launcher. Enter your
improvements into PowerPoint .
Come to call-back and collect a set of precision data (by shooting
spheres). Bring a friend to help. Complete #2 and 3, above. Provide proof of
completion to Mr. Stapleton.
Class #2
Thursday,
1/27
Warm-Up:
Student A and Student B had a shooting contest
to see who could shoot with greater precision. The average
deviation for shooter A was 4.8cm. The average deviation for
student B was 4.1. Look closely at the tables and decide who was
the better shooter.
A. Long/Short Precision
B. Long/Short Precision
Trial
Distance From Launcher (cm)
Deviation From Average (cm)
Trial
Distance From Launcher (cm)
Deviation From Average (cm)
1
98
3.2
1
16
1.1
2
89
5.8
2
10
4.9
3
95
0.2
3
15
0.1
4
92
2.8
4
13
1.9
5
93
1.8
5
13
1.9
6
106
11.2
6
25
10.1
7
85
9.8
7
6
8.9
8
98
3.2
8
19
4.1
9
91
3.8
9
12
2.9
10
101
6.2
10
20
5.1
Total
948
48
Total
149
134.1
Average
94.8
4.8
Average
14.9
4.1
Today:
Finish your launcher. By 3:30 tomorrow, you must
demonstrate that your launcher can shoot a marble 6m, with at least
30 degrees of loft. If you do not meet this deadline, your
launcher construction grade will be reduced by 30%.
If you finish your launcher, begin collecting baseline precision
data. [What does "baseline" mean?] The following video
shows how to collect data.
Homework: None
Absent Students:
Write a response to the warm-up above.
Work at least 45 minutes on your launcher. If other
members of your group have already completed your launcher, create a
proposal for several improvements to your launcher.
"Improvements" should be changes that make your launcher more
precise. Create drawings to explain your proposed
improvements.
Next Class:
Collect baseline precision data.
Make improvements to launcher.
Class #1
Tuesday,
1/25
Warm-Up:
Which target shows precise and accurate shooting?
Which target shows shooting that is neither accurate
nor precise?
Which target shows precise but not accurate shooting?
Which target shows accurate but not precise shooting?
What does "precision" mean?
What does "accuracy" mean?
Today:
Overview of Launcher Project: build a working
launcher; test it's precision; improve its precision using the
scientific method; compete.
Practice measuring precision. We will measure the
precision of the class launchers. Here's the worksheet, f
Homework:Be sure that you can
finish your launcher in about 45 minutes or less, next class. Part
of next class must be spent measuring your launcher's precision.
