Class 29: Thursday, 12/1/22

Today:

  • Today is your last chance to get your mobile in place before judging begins.
  • Work time:
    • Arduino Car Challenge
    • 3-D Printing "All by yourself"

Upcoming Stuff/Due Dates:

  • Arduino Car Contest -- December 15th
  • 3-D Printing all by yourself -- December 9th
Class 28: Tuesday, 11/29/22

Today:

Upcoming Stuff/Due Dates:

  • see classroom
Class 27: Friday, 11/18/22

Propose solutions to these Global Problems:
1.  Connecting objects with fishing line is difficult and takes too long.
2.  Hanging things from the classroom ceiling is difficult and takes too long.
Consider this:
3.  Why do people resign themselves to using difficult, time-consuming methods and/or technology?

Today:

  • Hang your mobile from the classroom ceiling.
  • I am predicting a lot of late submissions, so...  The top contest finishers will be selected from the mobiles that are turned in today.  Second tier (late) mobiles will still be judged, and they will receive the same feedback as the on-time mobiles, but they will be ranked after those handed in today.  Turning your mobile in late will not affect your ultimate project grade (at least not in the long term; you may have a zero for a while)

Upcoming Stuff/Due Dates:

  • Enjoy your break!  (and, maybe, finish your mobile, if you didn't finish today)
Class 27: Wednesday, 11/16/22

Today:

  • Work time -- see Monday (class 25) for details
  • Glowforge laser cutting directions are in Google Classroom.

Upcoming Stuff/Due Dates:

  • Finished Laser cut mobile -- due next class. Turn it in by hanging it here in the classroom.  I will transfer it to the science office for grading and judging.
Class 26: Monday, 11/14/22

Today:

  • Work time -- see last class for details
  • Glowforge laser cutting directions are in Google Classroom.

Upcoming Stuff/Due Dates:

  • Finished Laser cut mobile -- due on Friday. Turn it in by hanging it here in the classroom.  I will transfer it to the science office for grading and judging.
Class 25: Thursday, 11/10/22

Today:

  • Laser cutting
  • Prototype assembly
  • Adjustments.  You will probably have tilting beams.  To make adjustments, you could use a drill to create
  •  new holes.  Then move those holes accordingly in your cutting file.
  • Cut new replacement parts (Make sure that you use the same kind of wood, or their densities and weights may not match the rest of your mobile).

Upcoming Stuff/Due Dates:

  • Finished Laser cut mobile -- due on November 18th (Friday before Thanksgiving Break).  Turn it in by hanging it here in the classroom.  I will transfer it to the science office for grading and judging.
Class 24: Tuesday, 11/8/22

Today:

  • Time to laser cut!  Mobiles are due next Friday.
  • If you're finished, do your "3-D Print All By [your]self"
  • Stay tuned for "Glowforge Laser Cutting and Engraving All By Myself"

Upcoming Stuff/Due Dates:

  • Finished Laser cut mobile -- due on November 18th (Friday before Thanksgiving Break).  Turn it in by hanging it here in the classroom.  I will transfer it to the science office for grading and judging.
Class 23: Friday, 11/4/22

Today:

  • First mobile prototype due today.  Submit a Rhino file with just the 2-D drawing layout for laser-cutting.  You will be graded on your success in creating a 2-D drawing that conserves material, cuts efficiency, and has no double lines.

Upcoming Stuff/Due Dates:

  • Finished Laser cut mobile -- due on November 16th (Wednesday before Thanksgiving Break).  Turn it in by hanging it here in the classroom.  I will transfer it to the science office for grading.
Class 22: Wednesday, 11/2/22

Today:

Upcoming Stuff/Due Dates:

  • First mobile prototype due next class.  Submit a Rhino file with just the 2-D drawing layout for laser-cutting.  You will be graded on your success in creating a 2-D drawing that conserves material, cuts efficiency, and has no double lines.
  • Laser cut mobile -- due on November 16th.  Turn it in by hanging it here in the classroom.  I will transfer it to the science office for grading.
Class 21: Monday, 10/31/22

Today:

  • Check for missing assignments.
  • Take the laser-cutter safety quiz?
  • Return engineering log grade sheets
  • Work time

Upcoming Stuff/Due Dates:

  • First mobile prototype due this Friday.  Submit a Rhino file with just the 2-D drawing layout for laser-cutting.  You will be graded on your success in creating a 2-D drawing that conserves material, cuts efficiency, and has no double lines.
  • Laser cut mobile -- due on November 16th.  Turn it in by hanging it in the classroom.
Class 20: Thursday, 10/26/22

Is a design for the laser cutter generally more scalable than a design for the 3-d printer, or is the opposite the case?  Or is there no appreciable difference?

Today:

Upcoming Stuff/Due Dates:

  •  Today -- Progress Check #1 -- Laser Cut Mobile
  • Monday -- be ready to take the laser cutter safety quiz
Class 19: Tuesday, 10/25/22

Today:

  • Discuss upcoming stuff

Upcoming Stuff/Due Dates:

  • Today -- Laser-cut mobile Overview
  •  Thursday -- Progress Check #1 -- Laser Cut Mobile
  • Next Monday -- be ready to take the laser cutter safety quiz
Class 18: Friday, 10/21/22

Today:

  • Distribute the prizes  Current standings
  • Demonstrate how to complete "progress check #1" for the laser-cut mobile. VIDEO
  • Reminder about Rhino 7
  • Submit your stomp rocket engineering log.  It's due today.  Points will be deducted for my instructions being left intact (from the template).

Upcoming Stuff/Due Dates:

  • Next Tuesday -- Laser-cut mobile Overview
  • Next Thursday -- Progress Check #1 -- Laser Cut Mobile
Class 17: Wednesday, 10/18/22

Today:

  • Contest!
    • Inspection -- show me your rockets so that I can verify size and materials
    • Go to the football field. I need to remember to bring...
      • Large foam board
      • Laser distance measurer
      • Record book
  • Finish your engineering log.
  • Try opening Rhino 7

Upcoming Stuff/Due Dates:

  • The stomp rocket engineering log is due on Friday.
  • Check powerschool to see if you're missing anything.  If you've completed an assignment that's not showing up, email me.
Class 16: Monday, 10/17/22

Today:

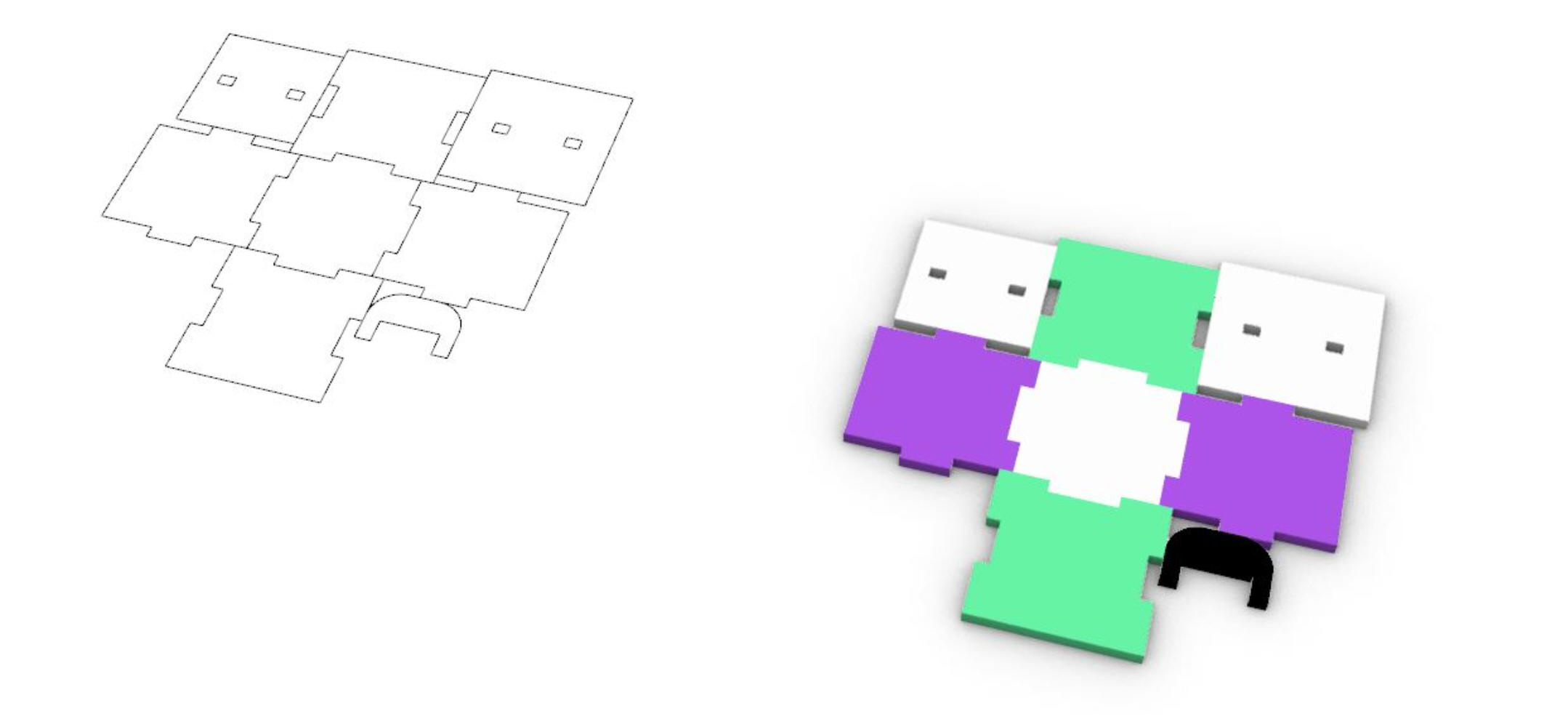

  • Here's an example of what your 2nd laser cut box tutorial assignment should look like...
  • Final stomp rocket testing
  • Work on the laser cut mobile

Upcoming Stuff/Due Dates:

  • Wednesday (next class): Stomp rocket contest
Class 15: Thursday, 10/13/22

Today:

  • A few helpful Rhino tricks...
    • setpt
    • align
    • create smarttrack point
    • measure
    • scale
  • Work time

Upcoming Stuff/Due Dates:

  • Today: Stomp Rocket Version 3.0
  • Next Tuesday: Stomp rocket contest -- weather permitting
Class 14: Tuesday, 10/11/22

Today:

  • Work time

Upcoming Stuff/Due Dates:

  • Today:
    • Stomp Rocket Version 2.0
    • Laser cut box tutorial, part 2.
  • Thursday: Stomp Rocket Version 3.0
  • Next Tuesday: Stomp rocket contest
Class 13: Wednesday, 10/5/22

Today:

  • Note -- for prototypes its fine to use hot glue.
  • Look at next contest -- laser cut mobile.  Some examples.
  • Work time

Upcoming Stuff/Due Dates:

  • See Google Classroom
Class 12: Monday, 10/3/22

Today:

  • Take a look at the calendar. -- Stomp rocket contest ends next Friday (10/14).
  • parametric design in Rhino?  A Grasshopper example
  • Work time

Upcoming Stuff/Due Dates:

  • Laser cut box tutorial #1 due today.  But I won't put the grade in until Wednesday.
  • The stomp rocket contest will take place next Friday.  If you are going to be gone on Friday, have your rocket tested on Wednesday.
  • The stomp rocket engineering log is due next Friday.  You must have at least three versions in your engineering log.
Class 11: Thursday, 9/25/22

Today:

  • Kyle Clark speaking today

Upcoming Stuff/Due Dates:

  • Laser cut box tutorial due next Monday.
Class 10: Tuesday, 9/23/22

Today:

  • Discuss grades.
  • Submit a stomp rocket .stl file if you have one ready.  There are Google Classroom assignments for versions 1, 2, and 3; and I will add more.
  • Test your stomp rockets outside, in front of the school, on the grass.
  • In the future, I will be deducting points from engineering logs that still have my instructions in them.  I will also be more critical with my grading.  Pay attention to the comments.

Upcoming Stuff/Due Dates:

  • Kyle Clark talk next class.  If you're curious, look up what he does.  I'm sure he would enjoy questions.  (Kyle Clark -- Beta Technologies)
  • Laser cut box tutorial due next Monday.
Class 9: Friday, 9/23/22

Today:

  • Submit a stomp rocket .stl file if you have one ready.
  • Test each new version of your stomp rocket and complete a Stomp Rocket Engineering Log entry for each one.  You can have more than three versions.

Assignments/Due Dates:

  • Stomp rocket .stl file due today.
  • Laser cut box tutorial due next Thursday (9/29).
Class 8: Wednesday, 9/21/22

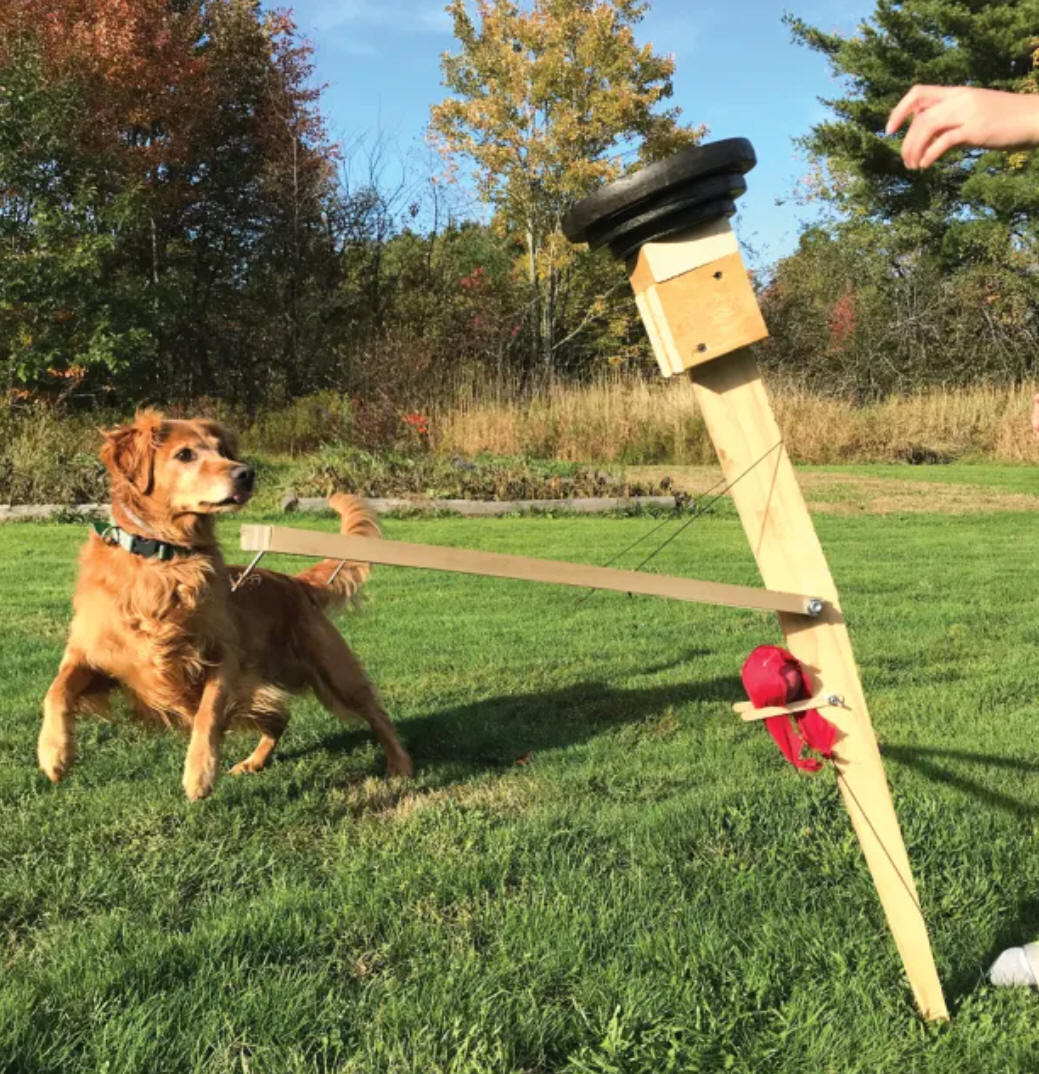

How can you redesign this trebuchet to make it throw farther?  Overall height and weight cannot be increased.

g1 g2

Today:

  • Note -- speaker next week (Kyle Clark -- Beta Technologies)
  • Submit your stomp rocket .stl file if you haven't done that already
  • If your first stomp rocket has been printed, test it and complete Version 1.0 section of the Stomp Rocket Engineering Log.
  • If you have designed and submitted a rocket file for 3-D printing, but you're waiting for it to be printed, begin the "Design for laser cutting" assignments in Google Classroom.

Assignments/Due Dates:

  • Stomp rocket .stl file due next class (this Friday).
  • Laser cut box tutorial due next Thursday (9/29).
Class 7: Monday, 9/19/22

What are some design considerations for 3-D printing?  What should you avoid?  Why?
--Undercuts and support, adhesion to bed, minimum thicknesses, infill, scale (mm), and file type (.stl)

Today:

  • Reminder -- we will be working on several projects at once.  3-D printing takes time, and there is no sense in doing nothing while you wait for your printed part.  We are going to move on to design for laser cutting before we finish the stomp rockets.
  • If anyone is ready to print, submit your file for printing.
    • 1 -- confirm that everything is the size that you want, and that you're measuring in the units that you want.
    • 2 -- set your scale to millimeters
      • Tools (yellow gear or tab)
        • Options
          • Units
            • Millimeters
    • 3 -- save your file as a .stl file (stereolithography).  Include your name in the name and make it a helpful name.
    • Submit your file in Google Classroom -- see "Submit your Stomp Rocket .STL file for 3-D Printing"
  • If you have designed and submitted a rocket file for 3-D printing, begin the "Design for laser cutting" assignments in Google Classroom.

Assignments/Due Dates:

  • Finish the chess piece tutorial
  • Design your stomp rocket.
Class 6: Thursday, 9/15/22

Today:

  • Revew Contest #2 goals and constraints
  • Finish??? chess piece tutorial
  • Check on the computer that isn't charging

Assignments/Due Dates:

  • Today??? -- chess piece tutorial (you can finish it on Monday, if you need to)
Class 5: Tuesday, 9/13/22

Today:

Assignments/Due Dates:

  • Friday -- chess piece tutorial
Class 4: Friday, 9/9/22

Today:

  • Marshmallow challenge award presentation
  • Share capstone project ideas.
  • Course Expectations (subject to change)
  • Preview of Contest #2 -- Hang Time Projectile
  • On the classroom laptops, begin CAD Design For 3-D Printing (see details in Google Classroom).
    • ***Before you log off, upload your Rhino files to your Google Drive, so that you can access them from other computers.
  • Try to sort out computers for working at home.

Assignments/Due Dates:

  • Today -- Capstone project brainstorming assignment -- in Google Classroom.
  • Next Thursday (9/15) -- "Chess Piece" tutorial (and Rhino file creation)
Class 3: Tuesday, 9/7/22

Today:

  • Final round -- Marshmallow Challenge Version 3.0.
    • Winners select their donuts.
    • Complete engineering log and submit in Google Classroom.  Make sure that you've done everything.  Then get rid of the brackets.  If you want to see the original template, because you've already removed the bracketed directions, you should be able to do that in Google Classroom.

Assignments/Due Dates:

  • Today -- before you leave class:
    • Finish the marshmallow contest engineering log.  Make a copy and submit it in Google Classroom.
  • Before next class
    • If you were not able to install Rhino, get a laptop.
  • Friday (9/9) -- Capstone project brainstorming assignment -- in Google Classroom.
  • Next Tuesday (9/13) -- "Chess Piece" tutorial (and Rhino file creation)
Class 2: Friday, 9/2/22
TED Talk by an arduino creator

Today:

  • Brief discussion of capstone projects and brainstorming capstone ideas.
  • Be aware -- we will usually have several projects going on at once.
  • Marshmallow challenge round 2 -- Build your version 2.0.
    • Construction
    • Log Entry -- attach your working Google Doc to the marshmallow challenge assignment in Google Classroom.  But don't "submit" it yet.
  • On the classroom laptops, begin CAD Design For 3-D Printing (see details in Google Classroom).
    • ***Before you log off, upload your Rhino files to your Google Drive, so that you can access them from other computers.
  • Today's class time -- 11:25-12:45 (or 12:40???)

Assignments/Due Dates:

  • Before next class (Wednesday, 9/7)
    • Attempt to install Rhino 7 on a home computer.
    • Make sure that you have finished the Version 2.0 section of the Engineering Log.  Attach the doc in the Google Classroom assignment ("Contest #1: Marshmallow Challenge"), but don't submit it.
  • Next Friday (9/9) -- Capstone project brainstorming
  • Tuesday, Sept 13 -- "Chess Piece" tutorial (and Rhino file creation)
Class 1: Wednesday, 8/31/22



Warm Up:  What is the difference between engineering and inventing? (some people's answers)



Google image search for "engineering design cycle"

Today:

  • Learn names/pronunciations
  • Enter attendance
  • The focus of this class -- to get better at problem-solving, specifically in the context of making things (by practicing and by acquiring skills)
  • Tentative list of upcoming contests in the Designing Solutions Cup series...
    • 3-D Printed Hang-time projectile
    • 3-D Printed Supercapacitor-Powered Fan Car
    • Laser-cut Cardboard egg drop vehicle
    • Laser-Cut Mobile
    • Cell phone remote controlled Arduino Car
    • Individual Capstone Projects (to solve the world's problems)
  • Begin Engineering Contest #1
  • Today's class time -- 10:50-11:55

Handouts:

  • Course expectations will be handed out next class.

Homework:

  • Accept the Rhino 7 EHS Science Team Invitation
  • Make sure that you have finished the Version 1.0 section of the Engineering Log.
